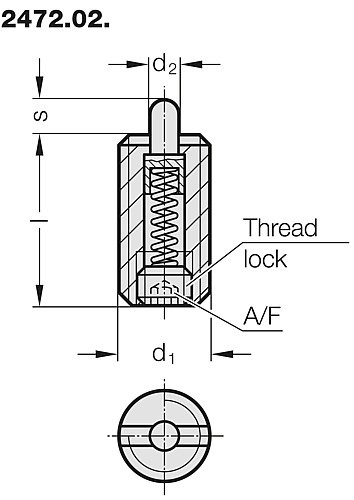

2472.02. Spring plunger, with spring loaded pin, with slot, increased spring force
Material:
Sleeve: Free machining steel, burnished
Pin: Free machining steel hardened, burnished
Spring: Nirosta Note:
For locking and for pressing upwards or downwards. Removable with hexagon socket screw key or slotted screwdriver.
Identification of increased spring force by two longitudinal marks on the sleeve.
Sleeve: Free machining steel, burnished
Pin: Free machining steel hardened, burnished
Spring: Nirosta Note:
For locking and for pressing upwards or downwards. Removable with hexagon socket screw key or slotted screwdriver.
Identification of increased spring force by two longitudinal marks on the sleeve.
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 8 items
| SKU | Thread | Length | Max. stroke | |
|---|---|---|---|---|
| 2472.02.005 | M5 | 18 mm | 2.3 mm | |
| 2472.02.006 | M6 | 20 mm | 2.5 mm | |
| 2472.02.008 | M8 | 22 mm | 3 mm | |
| 2472.02.010 | M10 | 22 mm | 3 mm | |
| 2472.02.012 | M12 | 28 mm | 4 mm | |
| 2472.02.016 | M16 | 32 mm | 5 mm | |
| 2472.02.020 | M20 | 40 mm | 7 mm | |
| 2472.02.024 | M24 | 52 mm | 10 mm |
