2451.10D. Damper stopper
Description:

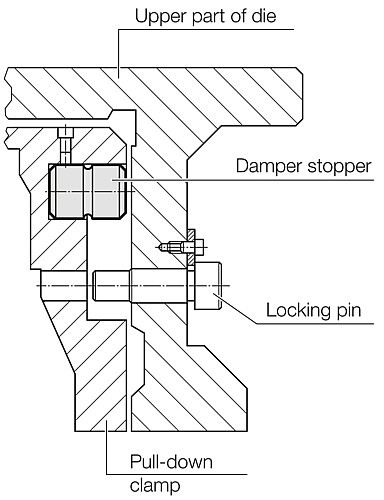

Damper stopper made of co-polyester elastomer dampen the recoil on the locking and unlocking pins in the manufacturing of jigs. Damper stoppers are used in the automotive and white goods industry. Damper stoppers sit inside the pull-down clamps and are radially stressed. The number and size depends on the weight and the velocity of the pull-down clamps.
Benefits:
- High absorption of force and energy
- Slight settlement
- UV protection
- Long service life and high level of operating safety
- Noise reduction
- High degree of eff ectiveness Material:
Co-polyester elastomer, black
Technical data:
Surroundings: Resistant to microbes, seawater, chemicals.
No absorption of water and no swelling.
Grease and oil resistant.
Approved temperature range: -40 °C to +90 °C (-40 °F to +194 °F)
Damper stopper made of co-polyester elastomer dampen the recoil on the locking and unlocking pins in the manufacturing of jigs. Damper stoppers are used in the automotive and white goods industry. Damper stoppers sit inside the pull-down clamps and are radially stressed. The number and size depends on the weight and the velocity of the pull-down clamps.
Benefits:
- High absorption of force and energy
- Slight settlement
- UV protection
- Long service life and high level of operating safety
- Noise reduction
- High degree of eff ectiveness Material:
Co-polyester elastomer, black
Technical data:
Surroundings: Resistant to microbes, seawater, chemicals.
No absorption of water and no swelling.
Grease and oil resistant.
Approved temperature range: -40 °C to +90 °C (-40 °F to +194 °F)
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 4 items
| SKU | Outside diameter | Length | |
|---|---|---|---|
| 2451.10D.040.060 | 40 mm | 60 mm | |
| 2451.10D.050.070 | 50 mm | 70 mm | |
| 2451.10D.063.080 | 63 mm | 80 mm | |
| 2451.10D.080.090 | 80 mm | 90 mm |
