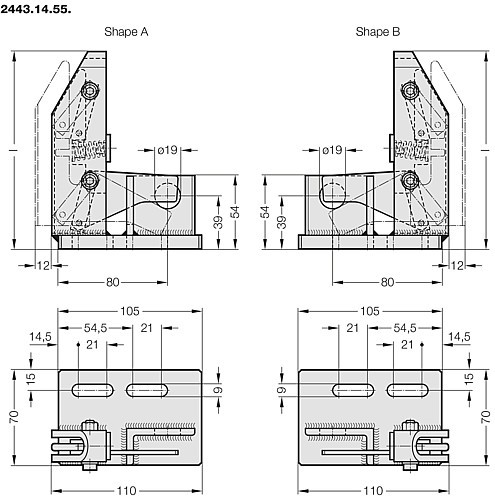

2443.14.55. Position monitor for boards
Material:
Steel Note:
See following pages for accessories. Attention:
At least two position monitors must be installed crosswise. In case of large parts, such as the side part, a third position monitor should be placed. The position monitors should be placed in such a way that a perfect querying of the sheet metal part is guaranteed. Position monitors should be arranged a minimum of 5 mm away from the pulling or locking bards and not within the range of strong sheet movement.
Steel Note:
See following pages for accessories. Attention:
At least two position monitors must be installed crosswise. In case of large parts, such as the side part, a third position monitor should be placed. The position monitors should be placed in such a way that a perfect querying of the sheet metal part is guaranteed. Position monitors should be arranged a minimum of 5 mm away from the pulling or locking bards and not within the range of strong sheet movement.
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 6 items
| SKU | Height | FORM | |
|---|---|---|---|
| 2443.14.55.01 | 145 mm | A | |
| 2443.14.55.02 | 145 mm | B | |
| 2443.14.55.03 | 185 mm | A | |
| 2443.14.55.04 | 185 mm | B | |
| 2443.14.55.25 | 225 mm | A | |
| 2443.14.55.26 | 225 mm | B |
