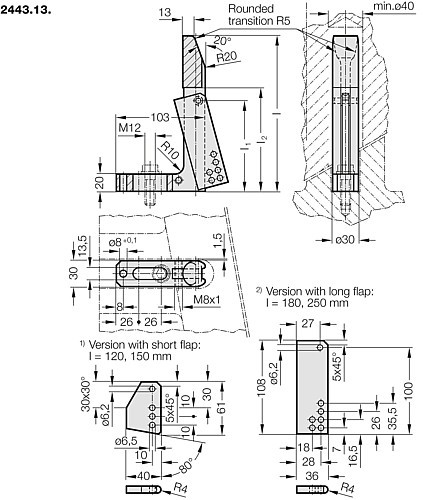

2443.13. Guide with part position control, VDI
Material:
Guide: Ck 60, area of pilot taper hardened 50 + 5 HRC
Flap: St 37, hardened 58 + 2 HRC Execution:
forged Note:
See following pages for accessories.
Guide: Ck 60, area of pilot taper hardened 50 + 5 HRC
Flap: St 37, hardened 58 + 2 HRC Execution:
forged Note:
See following pages for accessories.
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 4 items
| SKU | Height | W | |
|---|---|---|---|
| 2443.13.120 | 120 mm | [0:10:0.01] | |
| 2443.13.150 | 150 mm | [0:10:0.01] | |
| 2443.13.180 | 180 mm | [0:10:0.01] | |
| 2443.13.250 | 250 mm | [0:10:0.01] |
