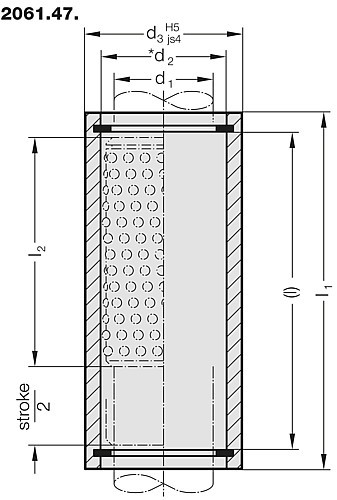

2061.47. Guide bush for ball bearing, with stroke limitation
Material:
Tool steel, hardened 62 ± 2 HRC Execution:
Bearing surfaces honed,
outside diameter precision ground. Slip-Fit Bonding:
The position of the bearing is given by push fit holes tolerance H5. The adhesive (order no. 281.648) provides optimum push retention whilst offering the following advantages:
- high accuracy and stiffness
- no problems to find position when changing bushings
We do not recommend to press fit for the same reasons mentioned above. Note:
↗ Notes on ball bearing type guides at the beginning of chapter D.
*↗ Preloading see pairing classification at the beginning of chapter D
↗ Matching guide combinations, see selection matrix at the beginning of chapter D.
↗ Assembly guide lines / Dimensional requirements and tolerances at the end of chapter D. Tolerance range:
yellow = .10
green = .20
red = .30
Tool steel, hardened 62 ± 2 HRC Execution:
Bearing surfaces honed,
outside diameter precision ground. Slip-Fit Bonding:
The position of the bearing is given by push fit holes tolerance H5. The adhesive (order no. 281.648) provides optimum push retention whilst offering the following advantages:
- high accuracy and stiffness
- no problems to find position when changing bushings
We do not recommend to press fit for the same reasons mentioned above. Note:
↗ Notes on ball bearing type guides at the beginning of chapter D.
*↗ Preloading see pairing classification at the beginning of chapter D
↗ Matching guide combinations, see selection matrix at the beginning of chapter D.
↗ Assembly guide lines / Dimensional requirements and tolerances at the end of chapter D. Tolerance range:
yellow = .10
green = .20
red = .30
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 42 items
| SKU | Guide diameter | Classification | Installation length | |
|---|---|---|---|---|
| 2061.47.015.060.10 | 15 mm | yellow | 60 mm | |
| 2061.47.015.060.20 | 15 mm | green | 60 mm | |
| 2061.47.015.060.30 | 15 mm | red | 60 mm | |
| 2061.47.016.060.10 | 16 mm | yellow | 60 mm | |
| 2061.47.016.060.20 | 16 mm | green | 60 mm | |
| 2061.47.016.060.30 | 16 mm | red | 60 mm | |
| 2061.47.019.077.10 | 19 mm | yellow | 77 mm | |
| 2061.47.019.077.20 | 19 mm | green | 77 mm | |
| 2061.47.019.077.30 | 19 mm | red | 77 mm | |
| 2061.47.020.077.10 | 20 mm | yellow | 77 mm | |
| 2061.47.020.077.20 | 20 mm | green | 77 mm | |
| 2061.47.020.077.30 | 20 mm | red | 77 mm | |
| 2061.47.024.077.10 | 24 mm | yellow | 77 mm | |
| 2061.47.024.077.20 | 24 mm | green | 77 mm | |
| 2061.47.024.077.30 | 24 mm | red | 77 mm | |
| 2061.47.025.077.10 | 25 mm | yellow | 77 mm | |
| 2061.47.025.077.20 | 25 mm | green | 77 mm | |
| 2061.47.025.077.30 | 25 mm | red | 77 mm | |
| 2061.47.030.095.10 | 30 mm | yellow | 95 mm | |
| 2061.47.030.095.20 | 30 mm | green | 95 mm | |
| 2061.47.030.095.30 | 30 mm | red | 95 mm | |
| 2061.47.032.095.10 | 32 mm | yellow | 95 mm | |
| 2061.47.032.095.20 | 32 mm | green | 95 mm | |
| 2061.47.032.095.30 | 32 mm | red | 95 mm | |
| 2061.47.038.120.10 | 38 mm | yellow | 120 mm | |
| 2061.47.038.120.20 | 38 mm | green | 120 mm | |
| 2061.47.038.120.30 | 38 mm | red | 120 mm | |
| 2061.47.040.120.10 | 40 mm | yellow | 120 mm | |
| 2061.47.040.120.20 | 40 mm | green | 120 mm | |
| 2061.47.040.120.30 | 40 mm | red | 120 mm | |
| 2061.47.048.120.10 | 48 mm | yellow | 120 mm | |
| 2061.47.048.120.20 | 48 mm | green | 120 mm | |
| 2061.47.048.120.30 | 48 mm | red | 120 mm | |
| 2061.47.050.120.10 | 50 mm | yellow | 120 mm | |
| 2061.47.050.120.20 | 50 mm | green | 120 mm | |
| 2061.47.050.120.30 | 50 mm | red | 120 mm | |
| 2061.47.060.120.10 | 60 mm | yellow | 120 mm | |
| 2061.47.060.120.20 | 60 mm | green | 120 mm | |
| 2061.47.060.120.30 | 60 mm | red | 120 mm | |
| 2061.47.063.120.10 | 63 mm | yellow | 120 mm | |
| 2061.47.063.120.20 | 63 mm | green | 120 mm | |
| 2061.47.063.120.30 | 63 mm | red | 120 mm |
